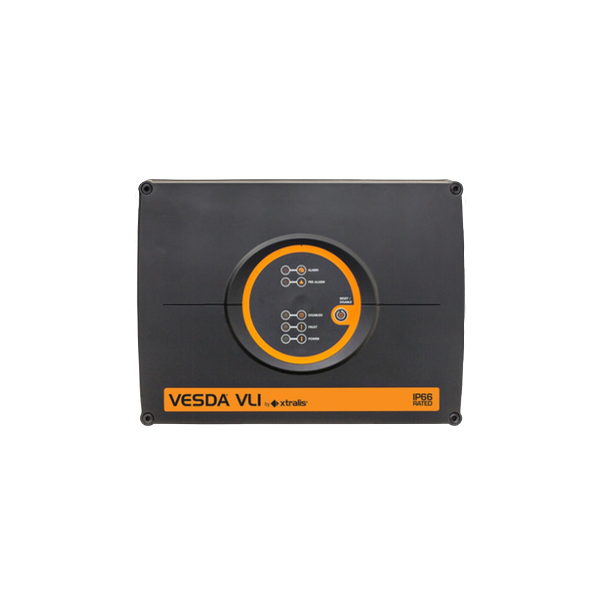

Vesda VLI-880
Vesda VLI-880
Out of stock; call for lead time
The Vesda VLI-880 is an industrial-grade laser aspirating smoke detector (ASD) built for harsh environments, drawing air samples through up to four inlet pipes spanning up to 360 meters combined and continuously monitoring flow with ultrasonic sensing and AutoLearn Smoke/Flow calibration. It ships without a VESDAnet card (the VLI-885 variant adds one), and carries five onboard relays for fire, fault, and configurable alarm outputs.
Key Features
- Covers up to 2,000 m² (21,520 sq ft) per detector via aspirating sample pipes
- Patent-pending Intelligent Filter with Lint Trap, sub-sampling inertial separator, and secondary filter to protect optics in dusty/harsh environments
- Clean Air Zero referencing and air-path monitoring for stable long-term sensitivity
- 5 status LEDs and local USB port for on-site configuration; compatible with Xtralis VSC, VSM4, and ASPIRE software
Technical Specifications
- Inlet Pipes: Up to 4, up to 360 m combined pipe length
- Relays: 5 total (Fire, Fault, 3 configurable), latching or non-latching
- Enclosure: IP66-rated, rubberized finish, steel support bracket
- Rated Area: Class I, Division 2 (Groups A, B, C, D)
Certifications
- Class I, Division 2 hazardous location rating (Groups A, B, C, D)
