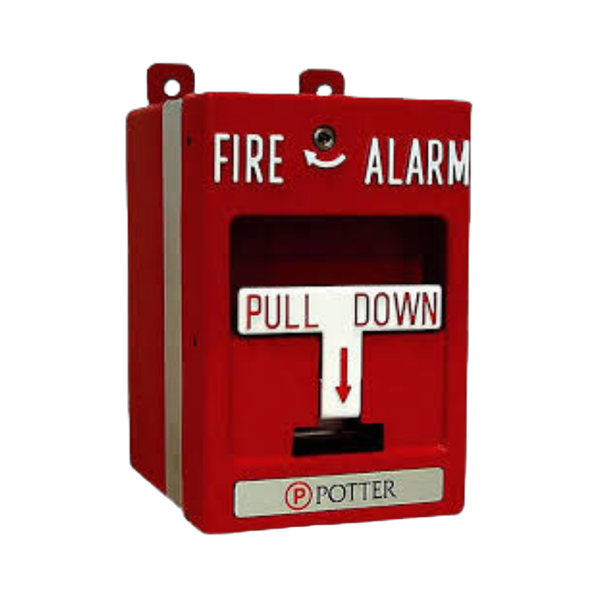

Potter Electric Signal RMS-6T-EXP

The Potter RMS-6T-EXP is an explosion-proof manual fire alarm pull station built from die-cast metal for hazardous and marine environments, available in single- or dual-action configurations. It carries a DPDT switch with screw-terminal connections and is rated for Class I (Groups B, C, D), Class II (Groups E, F, G), and Class III hazardous locations. On the single-action version, pulling the handle fully downward locks it in the alarm position, staying visible from up to 50 feet away until the station is opened with a key and the handle is reset.

Key Features

• Explosion-proof, die-cast construction for Class I, II, and III hazardous locations
• Single-action operation, with optional Lift-and-Pull or Break-Glass dual-action accessories
• High-gloss red enamel finish
• Handle locks visibly in the pulled position; reset requires a key

Technical Specifications

• Switch: DPDT with screw-terminal connections
• Enclosure Rating: NEMA 4X
• Hazardous Location Rating: Class I (Groups B, C, D), Class II (Groups E, F, G), Class III

Certifications

• UL Listed, FM Approved, Marine Rated, CSFM Listed, MEA Approved, ADA Compliant
