Simplex | 4904-9331-RC

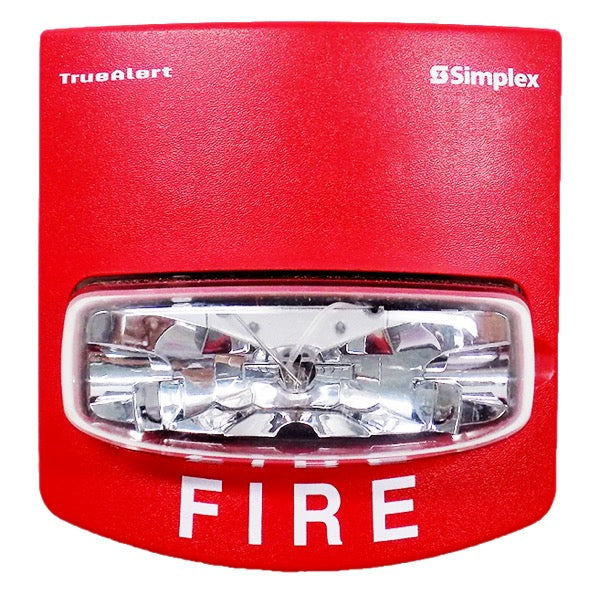

Simplex 4904-9331 TrueAlert Non-Addressable Wall-Mount Strobe

The Simplex 4904-9331 is a non-addressable, wall-mounted strobe designed to provide visible notification in fire alarm systems. It features a rugged, one-piece assembly that facilitates quick and convenient installation. The strobe is compatible with various mounting options, including single gang, double gang, or 4-inch square standard electrical boxes.

Key Features:

• Visible Notification: Equipped with a 15 candela xenon flashtube, the strobe delivers effective visual alerts during emergency situations.

• Flexible Mounting: The unit’s design allows for easy installation on single gang, double gang, or 4-inch square electrical boxes, enhancing adaptability to different building requirements.

• Accessible Wiring: Front-accessible wiring terminals simplify the installation, inspection, and testing processes, ensuring efficient system setup and maintenance.

• Durable Construction: Constructed from high-impact, flame-retardant thermoplastic, the strobe is built to withstand demanding environmental conditions.

Specifications:

• Operating Voltage Range: 16 VDC to 33 VDC

• Flash Rate: 1 Hz

• Current Draw at 24 VDC: Approximately 53 mA

• Dimensions: 5 1/8” H x 5” W x 2 3/4” D (130 mm x 127 mm x 70 mm)

• Operating Temperature Range: 32°F to 122°F (0°C to 50°C)

• Humidity Range: 10% to 93%, non-condensing at 100°F (38°C)

The Simplex 4904-9331 strobe is designed to meet ADA requirements and is UL listed under Standard 1971, ensuring compliance with industry standards for visible notification appliances.
