Simplex | 4099-9006

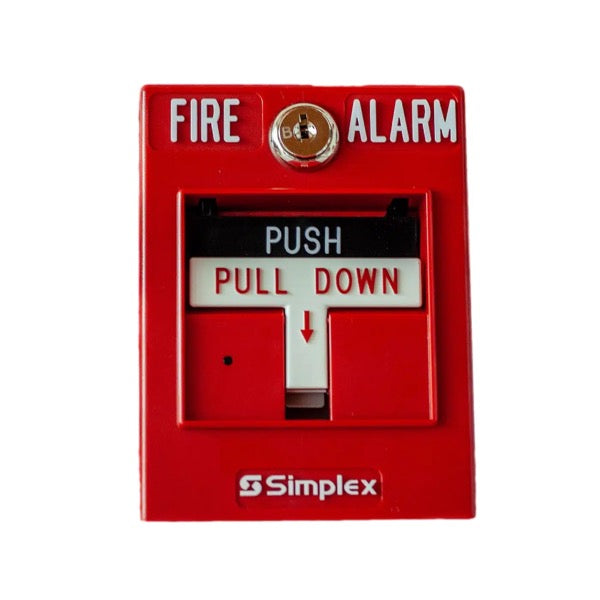

Simplex 4099-9006 Double Action Push-Pull Down Station

The Simplex 4099-9006 is an addressable manual pull station designed for fire alarm systems. It features a double-action mechanism, requiring both a push and a pull to activate, thereby reducing the likelihood of accidental activation. The station is equipped with a visible LED indicator that flashes during communication and illuminates steadily when the station has been activated, providing clear status information. It is compatible with Simplex fire alarm control panels equipped with IDNet or MAPNET II communications.

Key Features:

• Double-Action Operation: Requires both a push and a pull to activate, enhancing security and reducing false alarms.

• Visible LED Indicator: Flashes during communication and illuminates steadily when activated, offering clear status indication.

• Compatibility: Designed for use with Simplex fire alarm control panels equipped with IDNet or MAPNET II communications.

Specifications:

• Operating Voltage: 15 to 32 VDC

• Dimensions: 5 inches (127 mm) height; 3.75 inches (95 mm) width; 1 inch (25 mm) depth

• Temperature Range: 32°F to 120°F (0°C to 49°C)

The Simplex 4099-9006 is UL listed and NEMA 1 rated, ensuring reliability and durability in various environments.
