Simplex | 4098-9733-RC

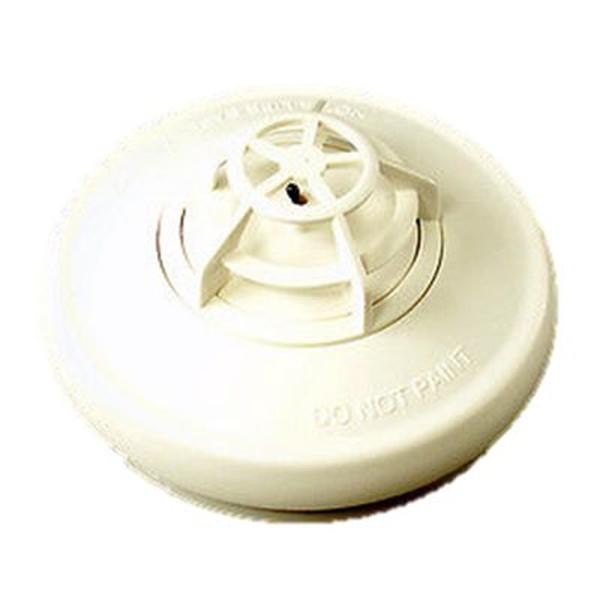

4098-9733 Heat Sensors

The 4098-9733 heat sensors are advanced devices with specific features designed for optimal fire detection. Here are the key highlights:

TrueAlarm Analog Sensing:

• These heat sensors utilize TrueAlarm analog sensing technology.
• They digitally transmit analog sensor values using IDNet or MAPNET II two-wire communications.

Rate-Compensated Fixed Temperature Sensing:

• TrueAlarm heat sensors are self-restoring and offer rate-compensated fixed temperature sensing.
• They provide the flexibility to choose between rate-of-rise temperature sensing or fixed temperature sensing.

Rate-of-Rise Temperature Sensing:

• Rate-of-rise temperature detection can be selected at the control unit with options of either 15°F or 20°F (8.3°C or 11.1°C) for each minute.
• Rate-of-rise temperature sensing provides rapid response to sudden temperature increases, a key feature for fire detection.

Fixed Temperature Sensing:

• Independent of rate-of-rise sensing, fixed temperature sensing can be programmed at 135°F or 155°F (57.2°C or 68°C).

These 4098-9733 heat sensors are equipped with advanced capabilities, enabling them to accurately and swiftly detect temperature changes, making them integral components of an effective fire alarm system.
