Simplex | 4090-9001-RC

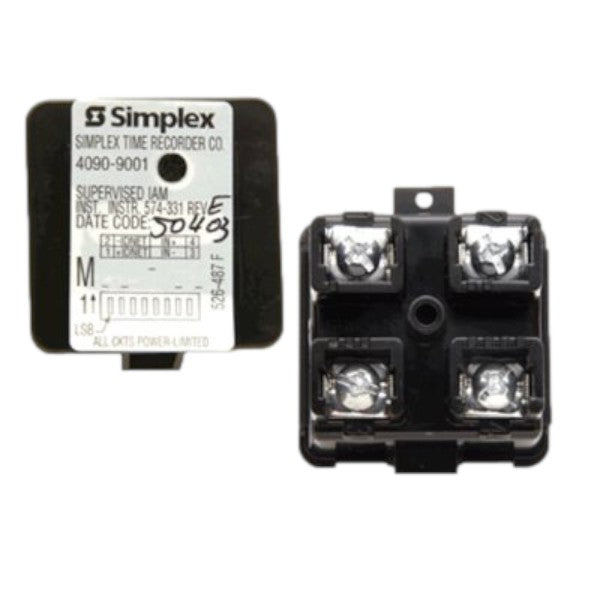

Simplex 4090-9001 Addressable Module (IAM): Enhanced Fire Alarm Control

The Simplex 4090-9001 Addressable Module, also known as IAM, is a key component in fire alarm systems designed to optimize fire detection and control. This module receives both power and communications through a two-wire MAPNET II or IDNet circuit, ensuring precise location-specific addressability. It monitors individual initiating devices like single station smoke detector alarm contacts or heat detector contacts and can oversee multiple devices at a single location, monitoring normally open dry contacts and wiring integrity all the way to an end-of-line resistor.

Key Features and Specifications:

• Robust Enclosed Design: Housed in a sturdy thermoplastic casing that minimizes dust infiltration.
• Easy Installation: Fits into a standard single gang electrical box for straightforward installation.
• Screw Terminals: Features screw terminals for simplified wiring connections.
• Visual LED Indicator: Equipped with a visible LED that flashes to indicate communications.
• Versatile Application: Suitable for indoor locations with temperatures up to 158°F (70°C), making it adaptable for various settings, including attic spaces.
• Compatibility: Designed for use with Simplex control panels, including Series 4007ES, 4008, 4010, 4010ES, and 4100ES for IDNet communications.

The Simplex 4090-9001 IAM provides reliable addressable communication, ensuring precise fire alarm control and monitoring while meeting UL Standard 864 requirements. It offers the flexibility needed for tracking contact closure status and momentary contact closure conditions, enhancing the effectiveness of fire detection systems.
