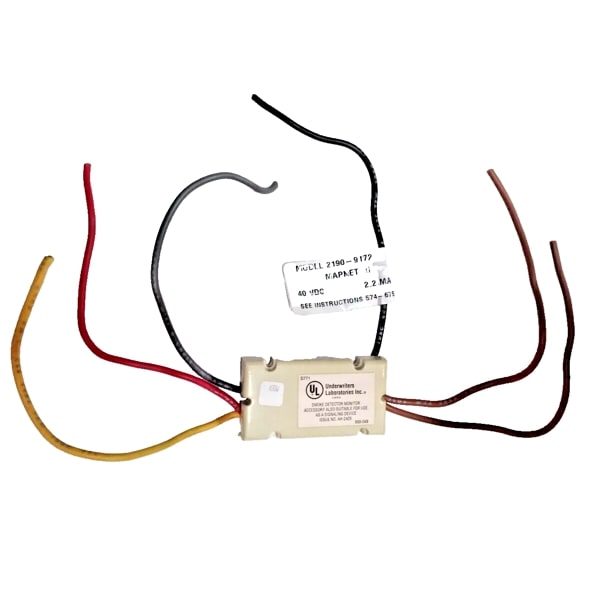

Simplex 2190-9172 Supervised IAM (Individual Addressable Module)

The Simplex 2190-9172 is a supervised Individual Addressable Module (IAM) designed for use with Simplex fire alarm control panels utilizing the MAPNET II communication protocol. This module enables the monitoring of a single, normally open (N.O.) dry contact device, such as manual pull stations or water flow switches, by providing a unique addressable point within the system.

Key Features:

• Addressable Monitoring: Allows for precise identification and monitoring of individual initiating devices within the fire alarm system.

• Supervised Input: Monitors the wiring to the connected device for open or short circuits, ensuring system integrity.

• Compact Design: Facilitates installation in standard electrical boxes, providing flexibility in various application settings.

• DIP Switch Addressing: Utilizes DIP switches for setting the module’s address, simplifying configuration and integration into the system.

Specifications:

• Power and Communication: Supplied via a two-wire MAPNET II circuit, eliminating the need for additional wiring.

• Compatibility: Designed for use with Simplex 4020, 4100, and 4120 series fire alarm control panels.

• Operating Environment:

• Temperature: 32°F to 120°F (0°C to 49°C)

• Humidity: Up to 93% non-condensing

• Dimensions: Approximately 4.5” H x 2.5” W x 1.5” D
