Silent Knight | SK-RELAY-6

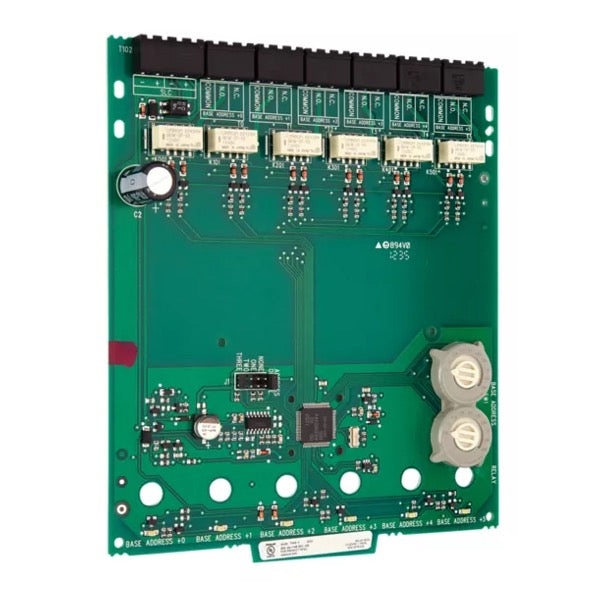

Silent Knight SK-RELAY-6 Addressable Six Relay Control Module

The Silent Knight SK-RELAY-6 is an addressable relay module designed for use with Honeywell Silent Knight Series fire alarm control panels (FACPs). It features six Form C (SPDT) relays, allowing the FACP to control discrete contacts via code command. This module is suitable for various normally open or normally closed applications, providing flexible control within the fire alarm system.

Key Features:

• Six Form C Contacts: Provides six independent relays for versatile control applications.

• Removable Terminal Blocks: Equipped with plug-in terminal blocks supporting 12 to 18 AWG wiring for easy installation and maintenance.

• Flexible Relay Programming: Allows mapping of relays to specific zone conditions, enhancing customization of system responses.

• Individual LED Indicators: Each relay contact has an associated LED to indicate its status, facilitating straightforward monitoring and troubleshooting.

• Rotary Address Switches: Simplifies the assignment of unique addresses to each module, expediting the setup process.

• Mounting Options: Designed for installation in the IDP-ACB cabinet, which can accommodate up to two SK-RELAY-6 modules.
