Silent Knight | IDP-RELAY
Module Relay Addressable w/2 Isolated Sets Of

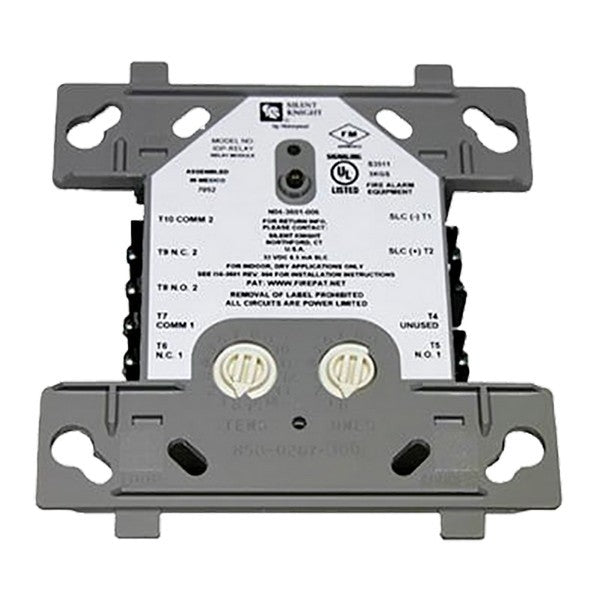

The Silent Knight IDP-RELAY is an addressable relay module designed for integration with Silent Knight IFP-series fire alarm control panels (FACPs). This module enables the control panel to operate two isolated sets of Form C contacts, functioning as a double-pole, double-throw (DPDT) switch. Each IDP-RELAY is assigned a unique signaling line circuit (SLC) loop address, allowing for precise control and monitoring within the fire alarm system. The relay contacts are versatile, supporting both normally open (NO) and normally closed (NC) configurations, making them suitable for a wide range of applications, including activating auxiliary devices or controlling building systems in response to fire events. The module features a panel-controlled status LED that flashes green during normal operation and remains solid red when in alarm, providing clear visual status indicators. Installation is streamlined with rotary address switches for quick setup and SEMS screws for easy wiring. The IDP-RELAY mounts directly into a standard 4-inch square electrical box with a minimum depth of 2-1/8 inches, facilitating straightforward integration into various building infrastructures. This module is compatible with several Silent Knight FACP models.
