Silent Knight | IDP-MONITOR-2

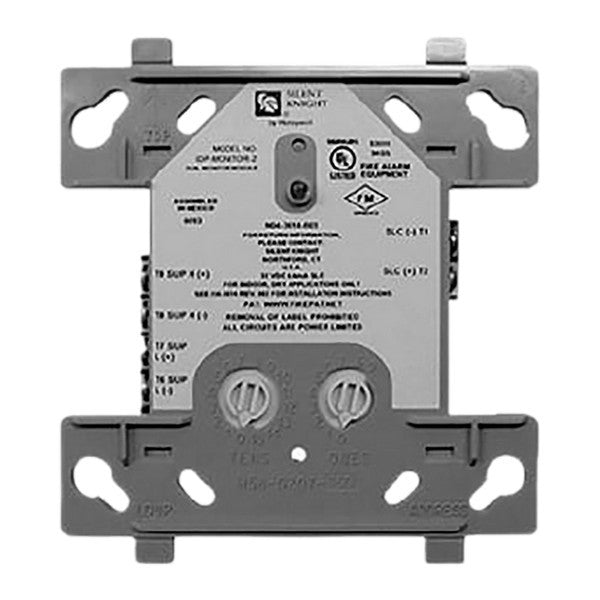

Silent Knight IDP-MONITOR-2 Dual Monitor Module

The Silent Knight IDP-MONITOR-2 is an addressable monitor module equipped with two independent initiating device circuits (IDCs). Designed for use with Silent Knight IFP-series fire alarm control panels (FACPs), this module serves as an interface to contact devices such as waterflow switches and pull stations, providing supervised monitoring for each circuit.

Key Features:

• Dual Independent Circuits: Monitors two separate Class B circuits simultaneously, each with a unique address, enhancing system flexibility and device monitoring capabilities.

• Fully Supervised: Ensures continuous supervision of wiring and connected devices, promptly detecting open or short circuit conditions to maintain system integrity.

• Rotary Address Switches: Facilitates quick and accurate address configuration using rotary switches, simplifying installation and reducing setup time.

• Status LED Indicators: Features a panel-controlled LED that flashes green during normal operation and illuminates solid red in alarm conditions, providing clear visual status indications.

• SEMS Screws for Easy Wiring: Incorporates SEMS screws to simplify wiring connections, ensuring secure and reliable terminations.
