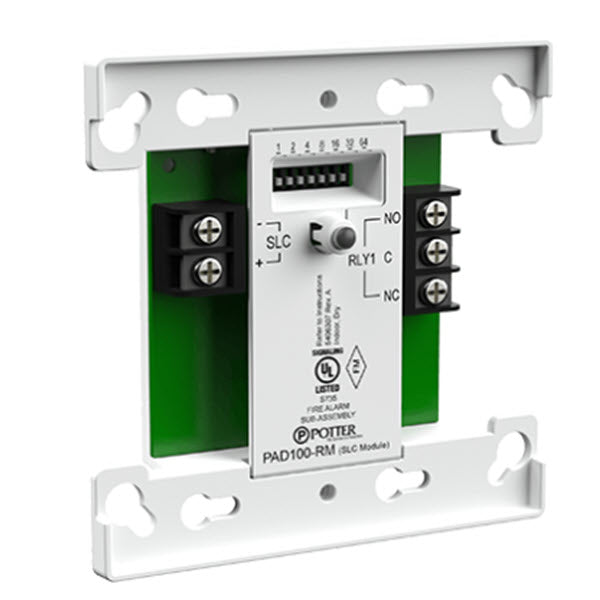

The Potter PAD100‑RM is an addressable relay interface module that provides one Form C dry-contact relay, using a single SLC loop address. Designed for use in Potter IPA and AFC/ARC fire alarm control systems, it mounts easily in a standard 4″ square or double‑gang box and features robust supervision and status monitoring.

Key Features:

• Form C Relay Output: Supplied with a SPDT relay rated for 2 A @ 30 VDC (or 0.5 A @ 125 VAC), enabling control of auxiliary systems like fans, dampers, or door holders .

• Addressable SLC Compatibility: Works with Class A, X, and B SLC wiring and occupies a single PAD loop address .

• Status LED Indicator: Integrated red LED flashes during polling and remains steady when activated, aiding in visual diagnostics .

• Low Power Draw: Consumes just 240 µA in both standby and alarm states, minimizing loop loading .

• Ease of Installation: Accepts 22–12 AWG wiring with terminals accessible in-box and mounts cleanly in standard electrical enclosures .

• Wide Operating Range: Supports ambient conditions from 32 °F to 120 °F (0–49 °C), with up to 93% relative humidity (non-condensing) .

• UL Listed & UUKL for Smoke Control: Includes a 5-year warranty and meets relevant safety standards .

Specifications:

• Operating Voltage: 24 VDC

• Max Standby/Alarm Current: 240 µA

• Relay Ratings: 2 A @ 30 VDC; 0.5 A @ 125 VAC

• Max Modules per Loop: 127

• Dimensions: 4.17″ L × 4.17″ W × 1.14″ D

• Mounting: 4″ square or double-gang box

• Ambient Conditions: 32–120 °F; 0–93% RH

The PAD100‑RM is ideal for integrating non-addressable devices into addressable systems, offering reliable relay control with built-in supervision and industry compliance.
