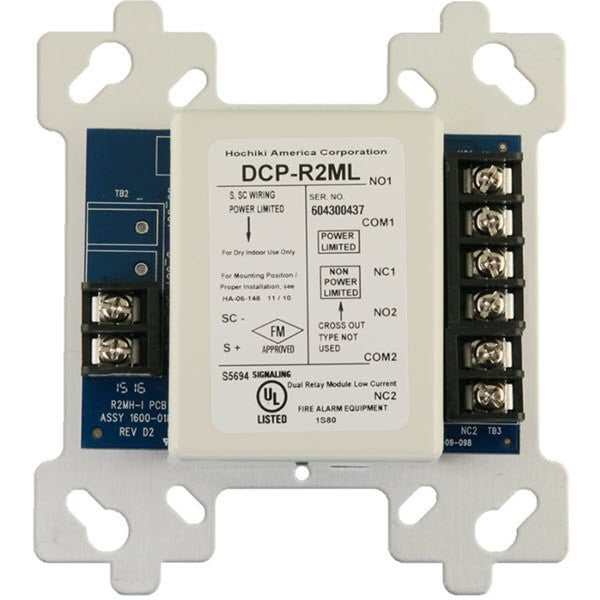

Hochiki | DCP-R2ML
Module Dual Relay 2A
SKU HK-F1P1-C001
$84.99
The Dual Relay Modules (R2ML/H Series) have been designed to provide flexible and quick response to emergency conditions. The R2ML/H Series allows independent control of two form contacts for a variety of normally open and normally closed contact applications such as fan operation, elevator recall, door closure, and auxiliary notification.
STANDARD FEATURES
STANDARD FEATURES
- Provides two independently configurable Form C contacts per address
- Contacts are rated as follow:
- R2ML: 2A @ 30 VDC / 0.5A @ 120 VAC
- R2MH: 8A @ 30VDC / 4.8A @ 250 VAC
- Up to127 devices can be used on each SLC loop
- Visible Bi-colored LED is software controlled and can be programmed to blink red or green when polled. The LED can be latched on when activated
- Yellow LED indicates a short circuit condition (R2ML-I & R2MH-I only)
- Programming is highly flexible providing 16 priority states plus zoning capability
- Operates on Class A or Class B SLC loop
- UL 864 Listed
