Gentex | WGECA24-75PWW

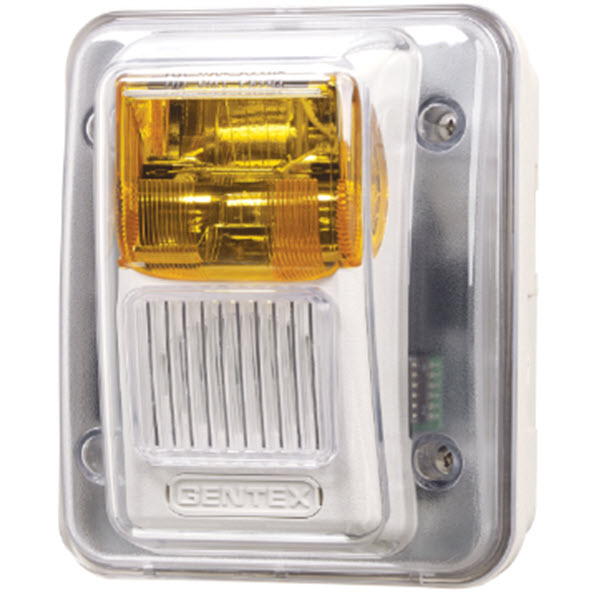

Horn-Strobe Outdoor Amber Lens Fixed 75 Cd No Ltr
Wall Mount w/GOE Enclosure
SKU GX-N2C2-1167
$84.99
The WGES/WGEC Series is a wall mount, outdoor listed strobe (WGES) or combination horn/strobe (WGEC) that offers dependable audible and visual alarms.
The WGES/WGEC offers a fixed 75 candela strobe and is shipped as a kit with either the GOE or GOELP enclosure. Listed to ANSI/UL 464 and ANSI/UL 1638, CAN/ULC listed, applicable IBC/IFC/IRC Standards and NFPA 72.
Standard Features
- Lower installation and operating costs
- Nominal voltage 24VDC
- Kit includes GOE or GOELP enclosure and WGES24 or WGEC24
- Features SuperSlide® bracket – ease of supervision testing
- Features Checkmate® – instant voltage verification
- Synchronize strobe and/or horn by using Gentex AVSM control module
- Prewire entire system, install mounting bracket, then install signal
- Input terminals 12 to 18 AWG
- Switch selection for high or low dBA
- Switch selection for chime, whoop, 2400Hz or mechanical tone
- Switch selection for continuous or temporal 3 audible signal
- Tamperproof re-entrant grill
- Silence audible while visual appliance will remain flashing
- Rugged die cast metal mounting bracket
- GOE and GOELP made of clear Lexan® providing maximum visibility and reliability for effective visible signaling – allowing full 75 candela output
- Faceplate available in red or off-white
