Gentex | SSPK24WLPR
Speaker-Strobe 25 or 707 Vrms Select-Cd
SKU GX-N2C2-5152
$67.99

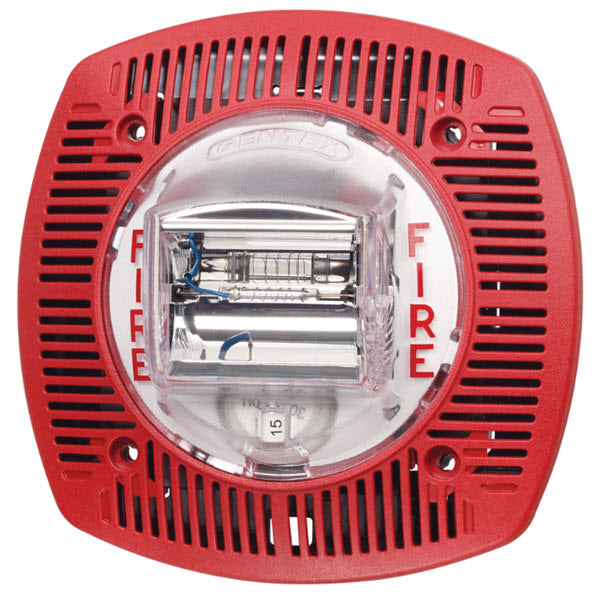

The SSPK24WLP Series are wall mount, selectable candela speaker/strobes designed to meet code requirements for audio, visual and voice communications.
The SSPK24WLP Series offers field selectable candela options of 15, 30, 60, 75 and 110 as well as a fixed 15/75 candela unit. Listed to ANSI/UL 1480, ANSI/UL 1638 and ANSI/UL 1971, CAN/ULC listed, applicable IBC/IFC/IRC Standards and NFPA 72.
Standard Features
- Strobe nominal voltage 24VDC
- Frequency range 400-4000Hz
- Speaker voltage 25 or 70.7 VRMs standard, field selectable
- Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W.
- Screw terminals, separate in/out wiring (12-18 gauge)
- Synchronize strobe by using Gentex AVSM control module
- High decibel output
- Candela selections are tamper proof
- Strobe maintains constant 1Hz flash rate regardless of input voltage
- Wall mount to a standard 4” square x 2 1/8” deep back box
- SSPK24WLP available with ALERT or FIRE text
- SSPK24WLP available plain (no lettering)
- Faceplate available in red or off-white
