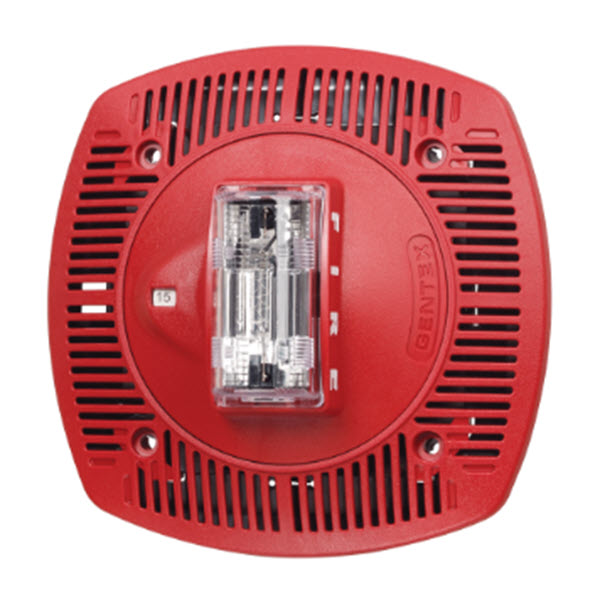

Gentex | SSPK24CLPR
Speaker-Strobe 25 or 707 Vrms Select-Cd
SKU GX-N2C2-5441
$71.99
The SSPKCLP/SSPK24CLP is a universal mount speaker (SSPKCLP) and ceiling mount speaker/strobe (SSPK24CLP) designed to meet code requirements for audio, visual and voice communications.
The SSPK24CLP speaker/strobes offers field selectable candela options of 15, 30, 75, 95 and 115. Listed to ANSI/UL 1480, ANSI/UL 1971 and ANSI/UL 2043, CAN/ULC listed, applicable IBC/IFC/IRC Standards and NFPA 72.
Standard Features
- SSPKCLP speaker is universal mount for ceiling or wall applications
- Strobe nominal voltage 24VDC
- Frequency Range 400-4000Hz
- Speaker voltage 25 or 70.7 VRMs standard, field selectable
- Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
- Screw terminals, separate in/out wiring (12-18 gauge)
- Synchronize strobe using Gentex AVSM control module
- High decibel output
- Candela selections are tamper proof
- Strobe maintains constant 1Hz flash rate regardless of input voltage
- Ceiling mount to a standard 4” square x 2 1/8” deep back box
- SSPK24CLP available with ALERT or FIRE text
- SSPK24CLP available plain (no lettering)
- Faceplate available in red or off-white
