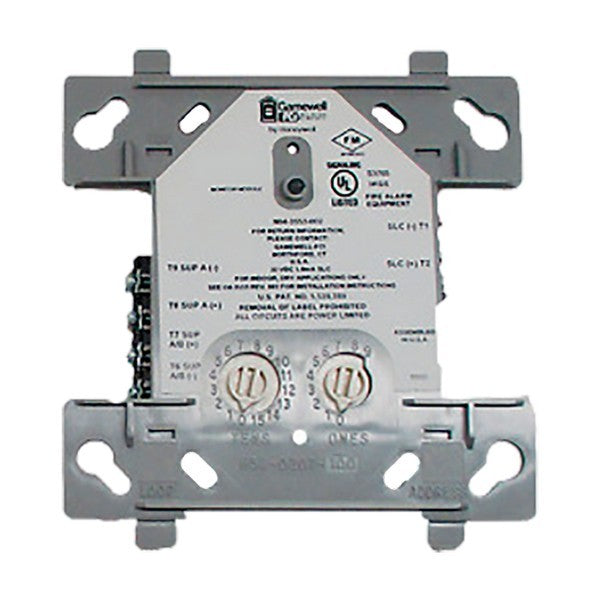

Gamewell-FCI Velociti Series AMM-2IF Addressable Dual Monitor Module

The Gamewell-FCI Velociti Series AMM-2IF is an addressable dual monitor module designed to supervise and monitor two independent Class B (Style B) initiating device circuits (IDCs). Each IDC can accommodate multiple normally open (N.O.) dry-contact devices, such as heat detectors, four-wire smoke detectors, manual pull stations, waterflow switches, and tamper switches.

Key Features:

• Dual Independent Circuits: The AMM-2IF provides two separate IDCs, each with its own end-of-line resistor, allowing for the monitoring of two distinct zones or device groups.

• Rotary Addressing: The module features a rotary switch for setting the address of the first circuit, while the second circuit is automatically assigned the next consecutive address, simplifying the configuration process.

• Velociti Protocol: Utilizing the Velociti communication protocol, the AMM-2IF offers enhanced communication speed with compatible Gamewell-FCI fire alarm control panels, resulting in faster response times.

• Bi-Color LED Indicator: Equipped with a bi-color LED that flashes green during regular polling and illuminates steady red in alarm conditions, providing clear visual status indications.

Specifications:

• Supervisory Current: 0.75 mA

• Alarm Current: 0.97 mA (with LED lit)

• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)

• Humidity Range: 10% to 93% non-condensing

• Dimensions: 4.5 inches (11.4 cm) height × 4 inches (10.2 cm) width × 1.25 inches (3.2 cm) depth

• End-of-Line Resistor: 47K ohms for each IDC
