Edwards | SIGA-CT1

Edwards | SIGA-CT1

Module Single Input Single Circuit Input

SKU ES-F1P1-7783
$54.99
Availability: In stock!

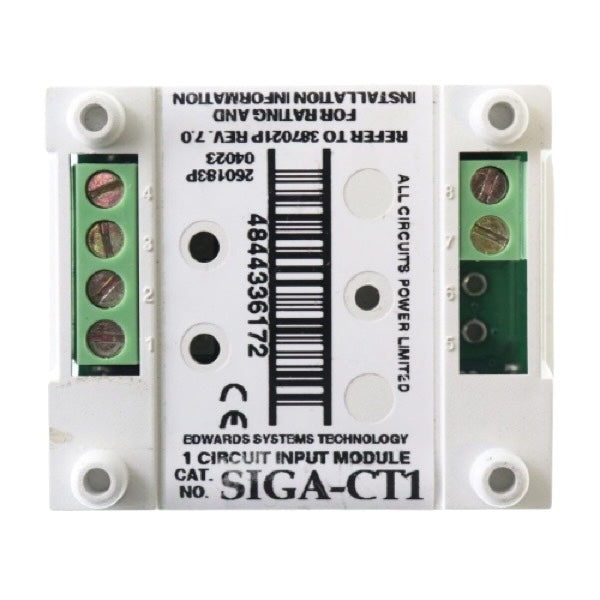

SIGA-CT1 Intelligent Addressable Input Modules

These intelligent analog addressable input modules offer versatile connectivity for Class B normally-open Alarm, Supervisory, or Monitor dry contact Initiating Device Circuits (IDC). A "personality code" selected during installation, downloaded from the Signature loop controller, defines their specific function.

Key Features

  • Multi-Application: Support Alarm, Alarm with delayed latching, Supervisory, and Monitor functions, with installer-configurable "personality codes."

  • High-Temperature Rating: SIGA-CT1HT is suitable for high-temperature environments, such as attics and heat detector monitoring.

  • Flexible Mounting: Choose between plug-in (UIO) for multiple modules or 1-gang mount for single modules.

  • Automatic Device Mapping: Modules convey circuit location information to the loop controller, enhancing system awareness.

  • Electronic Addressing: Addresses are programmable via the loop controller, PC, or SIGA-PRO Signature Program/Service Tool.

  • Ground Fault Detection: Detect ground faults down to the device level, aiding issue identification.

These modules cater to diverse system requirements with precision and flexibility.
