System Sensor | B300-6-IV
Detector Base Low Analog 6" use w/Analog Sensor

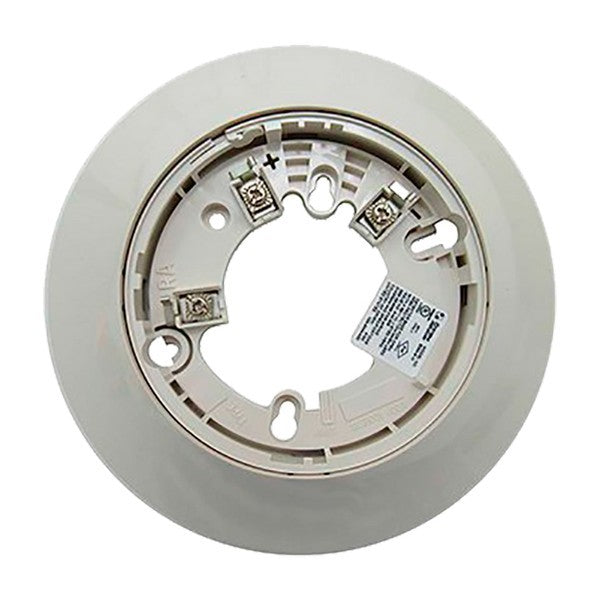

System Sensor B300-6-IV 6” Plug-in Detector Base
The System Sensor B300-6-IV is a 6-inch plug-in detector base designed for use with System Sensor’s intelligent detectors. Its low-profile, flanged design facilitates quick and secure detector installation, making it suitable for various fire alarm system applications.
Key Features:
• Quick and Secure Detector Plug-In: Enables efficient installation and maintenance of compatible detectors.
• SEMS Screws for Easy Wiring: Simplify the connection process, accommodating 12 to 24 AWG wires for installation flexibility.
• Remote Annunciator Connections: Provides screw terminals for power and remote annunciator connections, enhancing system integration.
Specifications:
• Dimensions: 6.1 inches (15.5 cm) diameter; 0.95 inches (2.4 cm) height
• Operating Temperature Range: –4°F to 158°F (–20°C to 70°C)
• Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing
Compatibility:
The B300-6-IV is compatible with System Sensor intelligent detectors, including:
• Smoke Detectors: FSP-951, FSP-951T, FSP-951T-IV, FSP-951-IV
• Heat Detectors: FST-951, FST-951H, FST-951R, FST-951-IV
• Multi-Criteria Detectors: FCO-951, FCO-951-IV
The B300-6-IV is designed to meet local code and application requirements while blending seamlessly into various environments with its standard ivory color.
