Edwards | BPS10A

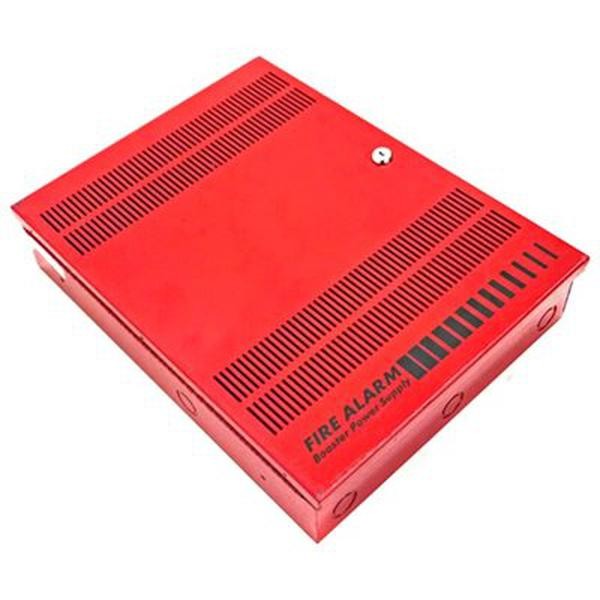

Edwards BPS10A Remote Booster Power Supply

The Edwards BPS10A is a 10-amp, 24 VDC filtered and regulated remote booster power supply designed to extend the power capabilities of fire alarm, mass notification, security, and access control systems. It provides additional Notification Appliance Circuits (NACs) or auxiliary power to support system expansion and ensure reliable operation of connected devices.

Key Features:

• High Output Capacity: Delivers a full 10-amp output to support multiple devices and extensive notification appliance circuits.

• Configurable Output Circuits: Offers four Class B (Style Y) NACs, which can be converted to two Class A (Style Z) NACs. Each circuit is rated at 3 amps and can be configured for:

• Notification Appliance Circuits

• Auxiliary power (resettable or non-resettable)

• Door holder power

• Synchronization Compatibility: Supports synchronization protocols for Genesis and Enhanced Integrity notification appliances, ensuring cohesive operation of connected devices.

• Supervised and Regulated Outputs: Provides supervised, power-limited outputs with self-restoring overcurrent protection to ensure system integrity and safety.

• Integral Battery Charger: Includes a built-in charger capable of supporting up to 10 amp-hour batteries within the enclosure and up to 65 amp-hour batteries in an external cabinet for access control applications.

Specifications:

• Primary (AC) Power: 120 VAC or 230 VAC, 50/60 Hz

• Output Circuits: 24 VDC filtered and regulated; total continuous current of 10 amps

• Output Ratings: 3 amps maximum per circuit

• Battery Charging Capacity: Supports up to 10 amp-hour batteries internally; up to 65 amp-hour batteries with an external cabinet

• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)

• Humidity Range: 0% to 93% non-condensing

• Dimensions: 17.0” H x 13.0” W x 3.5” D (43.2 cm H x 33.0 cm W x 8.9 cm D)
