Eaton Wheelock | MB-G10-24-S

Eaton Wheelock | MB-G10-24-S

Bell Motor Indoor/Outdoor 10 In Silver 24VDC

SKU CW-N2A4-6891
$75.99
Availability: Out of stock call for lead time

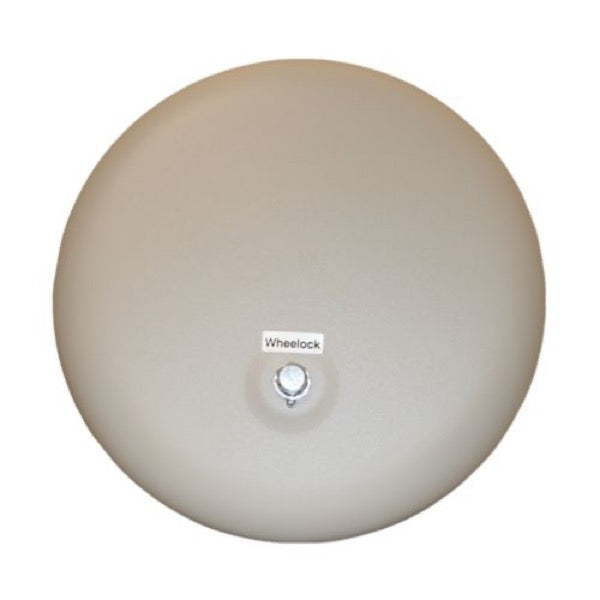

Eaton Wheelock MB-G10-24-S 10” Vibrating Motor Bell (Gray, 24 VDC)

The Eaton Wheelock MB-G10-24-S is a 10-inch, vibrating motor bell designed for fire and life safety alarm systems. Operating at 24 VDC, it delivers high sound output with low current draw, making it suitable for both indoor and outdoor applications.

Key Features

  • High Sound Output: Produces up to 92 dBA at 10 feet, ensuring effective audible notification in emergency situations.

  • Low Current Draw: Efficient operation with an average RMS current of 0.030 A and a UL maximum of 0.040 A.

  • Durable Construction: Features a low-frequency aluminum shell for enhanced audibility through walls and doors, and a permanent magnet motor for long-lasting performance.

  • Mounting Flexibility: Includes a built-in trimplate for semi-flush mounting; compatible with surface, semi-flush, outdoor, and concealed conduit installations.

  • RFI Suppression: Equipped with integral RFI suppression to minimize noise on the NAC circuit.

  • Compliance: Meets UL 464, CAN/ULC S525, FM, CSFM, MEA, and OSHA 29 Part 1910.165 standards.

  • Operating Voltage: Designed for 24 VDC systems, operating within a voltage range of 18.0 to 31.0 VDC.

  • Polarized for Supervision: Ensures DC supervision of NAC circuits.

  • Wiring: Screw terminals accommodate #12 to #18 AWG wire for quick in-out field wiring.
