Notifier | NC-100R
Module Relay Addressable Provides 2 Form-C D

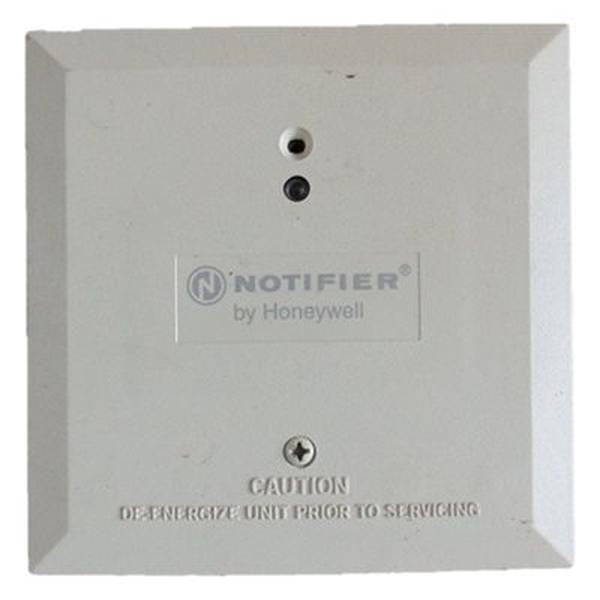

Notifier NC-100R Addressable Relay Module
The Notifier NC-100R is an intelligent, addressable relay module designed for use with Notifier’s FireWarden Series fire alarm control panels. It provides two isolated sets of Form-C (SPDT) dry-contact outputs, enabling the activation of various auxiliary devices such as fans, dampers, door holders, and control equipment. The addressability feature allows for selective activation, either manually or through panel programming.
Key Features:
• Built-in Type Identification: Automatically identifies the device to the control panel, streamlining system configuration.
• Internal Circuitry and Relay Powered by SLC Loop: Eliminates the need for external power sources, simplifying installation.
• Integral LED Indicator: Blinks green during communication with the control panel and remains steady red when activated, providing clear visual status.
• High Noise Immunity: Designed to resist electromagnetic and radio frequency interference, ensuring reliable operation.
• SEMS Screws with Clamping Plates: Facilitate easy and secure wiring connections.
• Rotary Address Switches: Allow for straightforward address setting, supporting direct decade entry of addresses ranging from 01 to 99 with the FireWarden-100-2(C) and 01 to 50 with the FireWarden-50(C).
